High-Efficiency IBC Filling Machine: The Ultimate Rocker Arm Solution for Palletized Drums

In the world of bulk liquid logistics, efficiency is measured by how quickly and safely you can fill large containers. Our IBC Filling Machine with a specialized Rocker Arm design is engineered to handle the most demanding industrial tasks. Designed to fill four 200L drums on a single pallet or a 1000L IBC tank, this system eliminates the need for manual pallet stacking and heavy lifting, streamlining your entire packaging workflow.

Innovative Rocker Arm Design for Multi-Container Filling

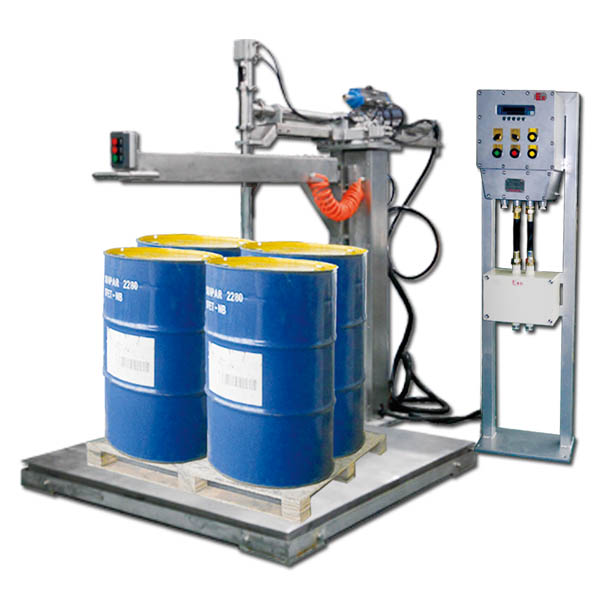

The standout feature of this Palletized Drum Filling Machine is its heavy-duty rocker arm. The filling gun is mounted on a precision-engineered swivel device that allows the operator to manually extend and rotate the nozzle forward, backward, left, and right. This allows for perfect alignment with four different barrel mouths on one pallet without ever moving the containers.

Key Benefits of the IBC Filling System:

• Explosion-Proof Safety (ExdiaIIBT4): Safety is non-negotiable. The entire IBC Filling Machine system, including the weighing display and sensors, is explosion-proof certified, making it ideal for solvents, fuels, and flammable chemicals.

• Insertion-Type Filling: To prevent splashing and protect your outer packaging, the filling gun uses an insertion method, ensuring the liquid is delivered cleanly into the container.

• Dual-Stage Quantitative Accuracy: Using a two-stage (Fast/Slow) filling method, the system achieves a remarkable filling error of only $\pm 0.2\text{-}0.3\text{kg}$, even for volumes up to $1500\text{kg}$.

• Smart Safety Interlocks: The system includes a "No-Barrel, No-Fill" sensor. If the gun head is not correctly inserted into the barrel mouth, it will automatically lift and refuse to discharge material.

Technical Specifications Table

This IBC Filling Machine is built for high-capacity, high-accuracy industrial performance.

Intelligent Workflow & "One-Button" Operation

Our Automatic IBC Filling Machine is designed to be operated by a single person with minimal training:

1. Positioning: The operator places a pallet with four empty 200L drums (or one 1000L IBC) onto the $1500\text{kg}$ scale platform.

2. Alignment: Using the rocker arm, the operator aligns the gun head with the first barrel mouth.

3. One-Click Fill: Pressing [Start] triggers the automatic sequence: the gun descends $\rightarrow$ system tares to zero $\rightarrow$ dual-speed filling begins.

4. Automatic Lift: Once the target weight is reached, the gun lifts automatically. The operator then moves the rocker arm to the next barrel.

5. Completion: Once all containers are filled, the entire pallet is moved off the scale via the integrated roller path or forklift.

Versatile Application and Customization

Whether you are looking for a Standard, Explosion-Proof, or Full Stainless Steel structure, our IBC Filling Machine can be customized to your site. We offer optional peripherals such as feed pumps, filtration systems, conveyors, and pneumatic cap screwers to build a fully integrated production line.
