200L Drum & IBC Filling Machine - Palletized Anti-Foam Submerged Filler

Dual-use 200L drum and IBC filling machine. Features submerged filling technology to eliminate foam in chemical packaging. 1500kg capacity, ±0.1kg accuracy, and SUS304 construction. Automate your palletized filling—request a quote!

Brand： GLZON

Model： GZM-WR1500

關閉

產品咨詢

客服熱線：000-000-0000

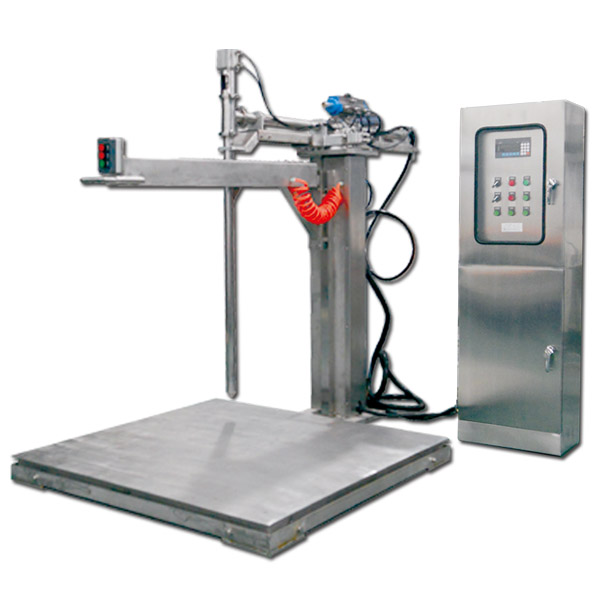

High-Efficiency Palletized 200L Drum & IBC Filling Machine: The Ultimate Solution for Chemical Liquid Packaging

In the demanding world of chemical manufacturing, efficiency and safety are paramount. Our Automatic Palletized 200L Drum and IBC Filling Machine is an industry-leading, dual-use system designed for high-volume, high-precision quantitative filling. Specifically engineered to handle four 200L barrels on a single pallet or a 1000L IBC (Ton Bucket), this machine optimizes your logistics by eliminating the need for individual container handling.

Innovative Rocker Arm & Submerged Filling Technology

This IBC Filling Machine features a heavy-duty rocker arm design, allowing the operator to maneuver the filling head across the entire pallet surface with ease. To solve the problem of "foaming" in chemical and solvent applications, the system utilizes an insertion-type, below-liquid-level filling method (Submerged Filling). By keeping the nozzle tip under the rising liquid, surface turbulence is minimized, preventing foam overflow and ensuring maximum speed.

Why Choose Our Dual-Use Filling System?

Dual-Use Versatility: Seamlessly switch between filling four 200L drums on a pallet or a single 1000L IBC stainless steel ton bucket.
Anti-Foam Submerged Nozzle: Essential for chemicals and oils that tend to bubble; ensures a clean, steady fill every time.
High-Precision Load Cell: With a maximum capacity of 1500kg and a filling error of only ±0.1-0.2kg, you save money by preventing overfills.
Durable SUS304 Construction: All contact parts and structural components are made of high-grade SUS304 Stainless Steel, ensuring long-term resistance to corrosive materials.

Technical Specifications Table

This 200L/IBC Dual-Use Filling Machine is built for heavy-duty industrial environments.

Feature	Technical Data
Max Weighing Capacity	$1500\text{kg}$
Filling Error	$\pm 0.1 - 0.2\text{kg}$
Filling Speed (200L)	$40 - 50$ barrels / hour
Filling Method	Insertion / Below-liquid-level (Anti-Foam)
Minimum Sensitivity	$0.5\text{kg}$
Control Mode	2-Speed (Fast/Slow) Quantitative Control
Gun Head & Pipeline	SUS304 Stainless Steel
Scale Platform Size	$1350 \times 1350\text{mm}$
Pipeline Pressure	$0.2 - 0.6\text{MPa}$
Power Supply	AC220V / 50Hz
Air Source Requirement	$0.4 - 0.8\text{Mpa}$
Operating Temperature	$-10^\circ\text{C}$ to $50^\circ\text{C}$

Intelligent Workflow: Rocker Arm Underwater Filling

The Rocker Arm Liquid Filling Scale is designed for a seamless, "One-Touch" operation:

Loading: The conveyor moves a pallet of four empty 200L drums onto the weighing platform.
Positioning: The operator moves the flexible rocker arm to align the gun head with the first drum mouth.
Automatic Filling: Upon pressing [Start], the gun head inserts into the drum. The system tares the weight and begins a two-stage filling process (Fast for speed, Slow for accuracy).
Anti-Drip Protection: Once the target weight is reached, the valve closes, the gun lifts, and an integrated anti-drip tray catches any residual liquid to keep the pallet clean.
Multi-Drum Completion: The process repeats for all four drums. Once the pallet is full, the operator presses the "Bucket Out" button, and the conveyor sends the heavy drums to the forklift area.
