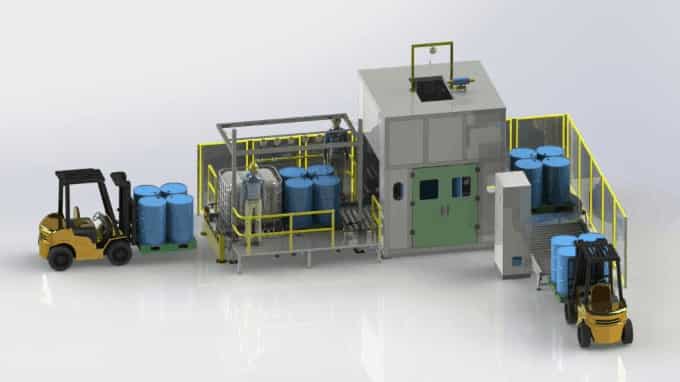

Automatic Drum & IBC Filling Machine: The Ultimate Solution for Bulk Liquid Packaging
In the fast-paced landscape of industrial liquid logistics, precision, safety, and operational efficiency are non-negotiable pillars of success. Our Automatic Drum & IBC Filling Machine is meticulously engineered to meet the high-volume demands of filling 200L drums and 1000L IBC tanks with surgical precision, redefining standards for bulk liquid packaging across diverse industries.
Crafted with cutting-edge technology, this machine integrates advanced high-precision weighing sensors and an optional explosion-proof control system, effectively eliminating material waste while ensuring an uncompromisingly safe working environment—whether handling hazardous liquids, corrosive chemicals, industrial lubricants, or food-grade ingredients. Its robust design and intelligent functionality address the critical pain points of traditional filling systems, delivering consistent performance even in the most demanding production environments.
Precision Engineering for Heavy-Duty Performance
Unlike conventional flow-meter systems that are susceptible to inaccuracies caused by temperature fluctuations or liquid viscosity changes, our machine employs state-of-the-art load cells to measure materials by weight. This "Quantitative Filling" methodology guarantees unparalleled consistency, achieving a remarkable ±0.1% filling precision across all batches—regardless of variations in material properties or environmental conditions. The result is reduced product waste, enhanced inventory control, and adherence to the strictest quality standards.
Key Applications
Our Automatic Drum & IBC Filling Machine is versatile enough to adapt to the unique requirements of multiple industries, including:
Petrochemicals: Lubricating oils, fuel additives, base oils, and petroleum derivatives.
Fine Chemicals: Organic solvents, epoxy resins, curing agents, corrosive acids, and specialty chemicals.
Food Industry: Edible oils, high-viscosity syrups, bulk liquid sweeteners, and food-grade additives.
Construction & Coatings: Concrete admixtures, industrial paints, liquid sealants, and architectural coatings.
Pharmaceuticals & Cosmetics: Bulk pharmaceutical ingredients (APIs), cosmetic bases, and personal care liquid formulations.
Technical Specifications
| Feature | 200L Drum Specification | 1000L IBC Specification |
|---|
| Weighing Range | 100kg - 400kg | 500kg - 1500kg |
| Filling Accuracy | ±0.1% F.S. | ±0.1% F.S. |
| Capacity (Speed) | 40 - 60 Drums / Hour | 6 - 12 IBCs / Hour |
| Filling Mode | Top-fill or Submerged (Anti-foam) | Submerged / Deep-tank Fill |
| Nozzle Material | SUS304 / SUS316L / PTFE Coating | SUS304 / SUS316L / PTFE Coating |
| Explosion-Proof Rating | EXiaIIBT4 (Optional) | EXiaIIBT4 (Optional) |
| Power Supply | AC220V/380V; 50Hz (Customizable for Global Markets) | AC220V/380V; 50Hz (Customizable for Global Markets) |
| Air Consumption | 0.5Mpa Clean, Dry Air | 0.5Mpa Clean, Dry Air |
| Power Rating | 3.5KW - 7.5KW | 5.5KW - 11KW |
| Overall Dimension (L×W×H) | 2800×1600×2400mm (Customizable) | 3200×1800×2800mm (Customizable) |
| Net Weight | 1200kg - 1800kg | 1800kg - 2500kg |
Core Features & Benefits
1. Advanced Anti-Foam Submersible Technology
For foam-prone liquids—such as surfactants, emulsions, or volatile chemicals—our machine features a specialized submersible filling nozzle. The nozzle descends directly to the bottom of the container and rises gradually as the liquid level increases, minimizing turbulence and eliminating air bubble formation. This not only preserves filling accuracy but also prevents product contamination and ensures complete filling without foam-related overflow.
2. Intelligent PLC Control System
The integrated PLC (Programmable Logic Controller) empowers operators with intuitive, efficient control:
Multi-Formula Storage: Save up to 30 custom filling profiles, enabling rapid changeovers between products and container types.
Dual-Speed Filling Logic: High-speed bulk filling (up to 95% of target weight) is followed by a precise "drip-feed" phase, ensuring exact weight compliance without sacrificing throughput.
Automatic Tare Function: The system automatically accounts for the weight of pallets and empty containers, eliminating manual calculations and reducing human error.
Touchscreen Interface: A user-friendly HMI (Human-Machine Interface) provides real-time data visualization, parameter adjustment, and troubleshooting guidance.
3. Safety & Environmental Compliance
Built to meet global GMP (Good Manufacturing Practices) and explosion-proof standards, our machine prioritizes operator safety and environmental responsibility:
Drip-Tight Nozzle Design: Prevents residual liquid leakage, keeping workspaces clean and reducing material waste.
Integrated Gas Collection Hood: Safely vents toxic, flammable, or volatile vapors away from the operator, mitigating health risks and ensuring compliance with air quality regulations.
Safety Interlocks: Emergency stop buttons, door sensors, and overload protection prevent accidents during operation.
Corrosion-Resistant Construction: Wetted parts (nozzles, hoses, tanks) are made from SUS316L or PTFE-coated materials, ensuring compatibility with aggressive chemicals.
4. Palletized Filling Capability
Optimize logistics efficiency with palletized filling functionality:
A long-reach swing arm allows the nozzle to access all four drums on a standard pallet without moving the pallet, reducing forklift traffic and minimizing container handling damage.
Compatible with standard 1200×1000mm pallets, ensuring seamless integration with existing warehouse and logistics workflows.
Operating Workflow
Alignment: The operator positions the drum/IBC under the filling nozzle—assisted by laser positioning guides in high-end models—to ensure precise nozzle alignment.
Start Cycle: A single button press initiates the automatic tare process and lowers the submersible nozzle into the container.
Dual-Speed Filling: The machine fills at high speed until reaching 95% of the target weight, then switches to slow drip-feed to achieve exact weight accuracy.
Completion: The nozzle retracts, and a built-in drip-collection tray catches any residual liquid to prevent contamination.
Data Logging: Each filling cycle’s exact weight, timestamp, and product ID are automatically recorded for inventory management and quality control traceability.
Next Cycle: The operator moves the filled container, and the system resets for the next batch—with optional automatic container indexing for fully automated production lines.
